Programmable Interval Timer- 8254

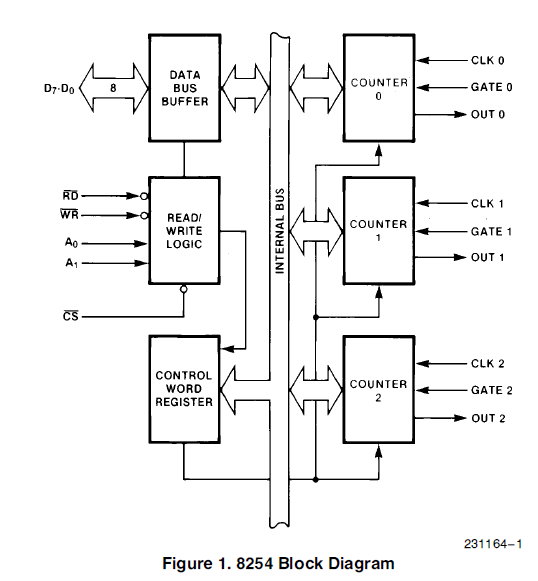

The 8254 is a programmable interval timer/counter designed for use with Intel microcomputer systems.It is a general purpose, mulch-timing element that can be treated as an array of I/O ports in the system software.The 8254 solves one of the most common problems in any microcomputer system, the generation of accurate time delays under software control. Instead of setting up timing loops in software, the programmer configures the 8254 to match his requirements and programs one of the counters for the desired delay.
After the desired delay, the 8254 will interrupt the CPU. Software overhead is minimal and variable length delays can easily be accommodated.

Click here to download the lecture sheet

Comments

Armature Winding ,Pole Pitch, Coil Span, Commutator Pitch

Now we are going to discuss about armature winding in details. Before going through this section, we should understand some basic terms related to armature winding of dc generator . Pole Pitch Definition of Pole Pitch The pole pitch is defined as peripheral distance between center of two adjacent poles in dc machine. This distance is measured in term of armature slots or armature conductor come between two adjacent pole centers. This is naturally equal to the total number of armature slots divided by number of poles in the machine. If there are 96 slots on the armature periphery and 4 numbers of poles in the machine, the numbers of armature slots come between two adjacent poles centers would be 96/4 = 24. Hence, the pole pitch of that dc machine would be 24. As it is seen that, pole pitch is equal to total numbers of armature slots divided by total numbers of poles, this can alternatively referred as armature slots per pole . Coil Span or Coil Pitch Coil of ...

Propagation-Radio-Waves

Radio Wave Propagation types

Winding Factor | Pitch Factor | Distribution Factor

Before knowing about, winding factor , we should know about pitch factor and distribution factor , as winding factor is the product of pitch factor and distribution factor . If winding factor is denoted by K w , pitch factor and distribution factor are denoted by K p and K d respectively, then, k w = k p k d . The pitch factor and distribution factor are explained below one by one. Pitch Factor In short pitched coil, the induced emf of two coil sides is vectorically added to get, resultant emf of the coil. In short pitched coil, the phase angle between the emfs induced in two opposite coil sides is less than 180° (electrical). But we known that, in full pitched coil, the phase angle between the emfs induced in two coil sides is exactly 180° (electrical). Hence, the resultant emf of a full pitched coil is just arithmetic sum of the emfs induced in both sides of the coil. We well know that, vector sum or phasor sum of two quantities, is always less than their a...
